Description
An integration of monitor, wireless image transmission receiver and remote control. Easy to carry with high performance. Skin-friendly silicone handle with ergonomic and all-in-one modular design. Highly efficient without complicated cable-plugging.
Key Features
- 1000nit peak brightness, 400PPI and 1200:1 contrast ratio
- 5.5 inch FHD touch screen
- Built-in battery for longer run time
- Control camera and the gimbal simultaneously
- Fast charging supported, fully charged in 2hrs

Immerse Yourself in Vivid Footage
5.5-inch FHD touch screen with 16:9 aspect ratio, wider screen secures a clearer monitoring and every detail is defined in crisp accuracy thanks to the 1920*1080 image quality.
Transform Filmmaking Works into A Hub of Productivity
With the monitor, wireless video receiver and remote control integrated in one device, MasterEye Visual Controller VC100 is gifted at performance and compatibility. Ergonomically-designed handgrip, snug silicone for better quality, simplified installation and connection, as well as auto pairing, all features contribute to your filmmaking in the wake of teamwork efficiency.
Always Stay Bright and Vivid
To achieve crisp and sheer image, the MasterEye Visual Controller is upgraded with 400PPI, 1200:1 contrast ratio and 1000nit peak brightness. Auto-adjustment of screen brightness according to the environment is available or you may manually adjust it according to your needs.
Larger Storage Support
The MasterEye Visual Controller supports Micro SD card to max 128GB capacity with write speed exceeding 10MB/s, transfer speed of Class 10 and above or microSD card with UHS-1 rating.
Screen Recording & Audio Monitoring

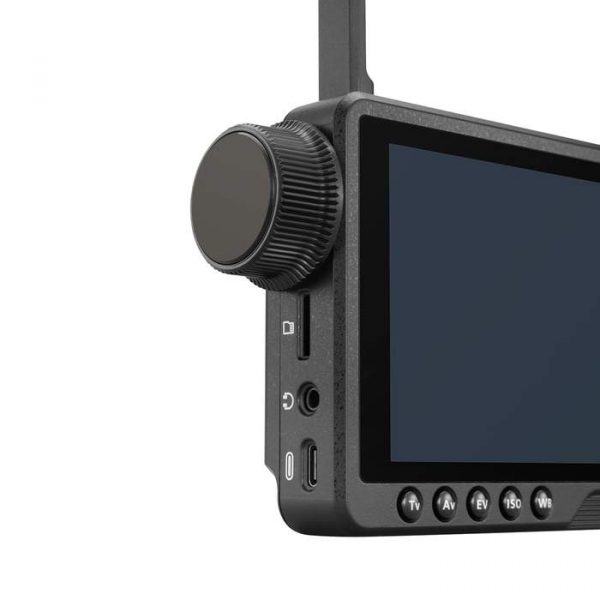

Offers 1080P high-quality recording backups and local album playback. Offers 3.5mm headphone port for real-time audio monitoring in scenes with conversations and audio.

Accurate Focus/Zoom Control and Motion Sensor Control
Paired with focus/zoom control motor to adjust focus or focal length. Supports customized adjustment of focus control sensitivity in three levels: Low/Medium/High.
* Requires TransMount Focus/Zoom Control Motor and TransMount Video
Try motion sensor control for more convenient high-level filming. Touch screen for switching stabilizer modes and reposition.
* Requires TransMount Video Transmission Transmitter AI


Product Specifications
Rated Power |
3W |
Rated Voltage |
11.1V |
Charging Voltage (Type-C Port) |
4.9V~20V |
Charging Current (Type-C Port) |
20mA~3A |
Internal Battery Runtime |
8hr |
Internal Battery Charging Time |
110min |
Internal Battery Capacity |
2200mAh |
External Battery Input Voltage |
6V~8.4V |
Output Resolution |
1080P/720P/576P/480P |
Output Frame Rate |
60/59.94/50/30/29.97/25/24/23.98fps |
Image Transmission Latency |
60ms |
Operation Frequency |
5.725GHz-5.825GHz |
|
5.15GHz-5.25GHz(For Japan) |
Equivalent Isotropically Radiated Power (EIRP) |
5.15GHZ-5.25GHZ <23DBM(CE) |
|
5.725GHZ-5.825GHZ <14DBM(CE) |
|
5.15GHZ-5.25GHZ <24DBM(FCC) |
|
5.725GHZ-5.825GHZ <30DBM(FCC) |
|
5.15GHZ-5.25GHZ <23DBM(SRRC) |
|
5.725GHZ-5.825GHZ <27DBM(SRRC) |
Transmission Distance |
150 meters |
Antenna Rotation Angle |
0° ~90° |
Screen Dimensions |
5.5 inch |
Screen Resolution |
1920*1080 |
Screen Aspect Ratio |
16:9 |
Screen Brightness |
1000 nits |
Recording Resolution/Frame |
Current Resolution/Frame Rate of the Image Transmission |
Screen Viewing Angle |
80° |
Supported Micro SD Card Types |
Max 128 GB storage, write speed ≥10MB/s, transfer speed of Class 10 and above or microSD card with UHS-1 rating |
Supporting File System |
FAT32 |
Operating Temperature |
-10℃ ~45℃ |
Product Net Weight |
~450g |
Dimensions with Expanded Antenna |
203*72*154mm (L*W*H) |
Dimensions with Folded Antenna |
203*72*92mm (L*W*H) |
What’s in the Box
ZHIYUN MasterEye Visual Controller VC100 * 1 |
USB Type-C cable * 1 |
User Manual * 1 |
